Custom Edge-Lit Channel Letters

β‚Ή8,999.00
  • Type:
    Custom Edge-Lit Channel Letters / Bespoke Perimeter-Lit Signage / Side-Lit Custom Letters

  • Material (Returns/Backs):
    Aluminum 5052-H32 / Stainless Steel 304 / Galvanized Steel / Brass / Copper / Titanium

  • Face Material:
    Clear Acrylic / Frosted Acrylic / Polycarbonate / Translucent Vinyl / Diffused Plastic / Tinted Acrylic / Custom-Cut Acrylic

  • Back Material:
    Aluminum Composite Panel (ACP) / PVC / Dibond / Acrylic / Composite Metal / Polycarbonate / Laser-Cut Metal

  • Lighting Technology:
    LED Edge Lighting / RGB LED Strips / Warm White LEDs / Cool White LEDs / Programmable or Dimmable LEDs / Color-Changing LEDs

  • Finish Options:
    Brushed Aluminum / Polished Stainless / Anodized Aluminum / Powder-Coated / Chrome / Brushed Bronze / Rose Gold / Hand-Painted Accents

  • Depth:
    2–5 inches (Slim-profile, Custom-Engineered Design)

  • Mounting Options:
    Flush Mount / Raceway Mount / Wireway Mount / Backer Panel / Stud / Standoff / Concealed / Suspended

  • Voltage:
    12V or 24V DC (Low Voltage, CE / UL / ETL Certified)

  • Durability:
    Weatherproof Gaskets / IP65–IP67 Rated LEDs / Waterproof LED Connectors


Production



  • 24/7 Advanced Manufacturing Facility — No holidays, no downtime

  • 100% Factory-Direct Custom Fabrication

  • In-House CNC, LED Integration, Powder Coating & Finishing

  • Precision-Built to International Standards

  • Global Shipping & Export-Ready Packaging

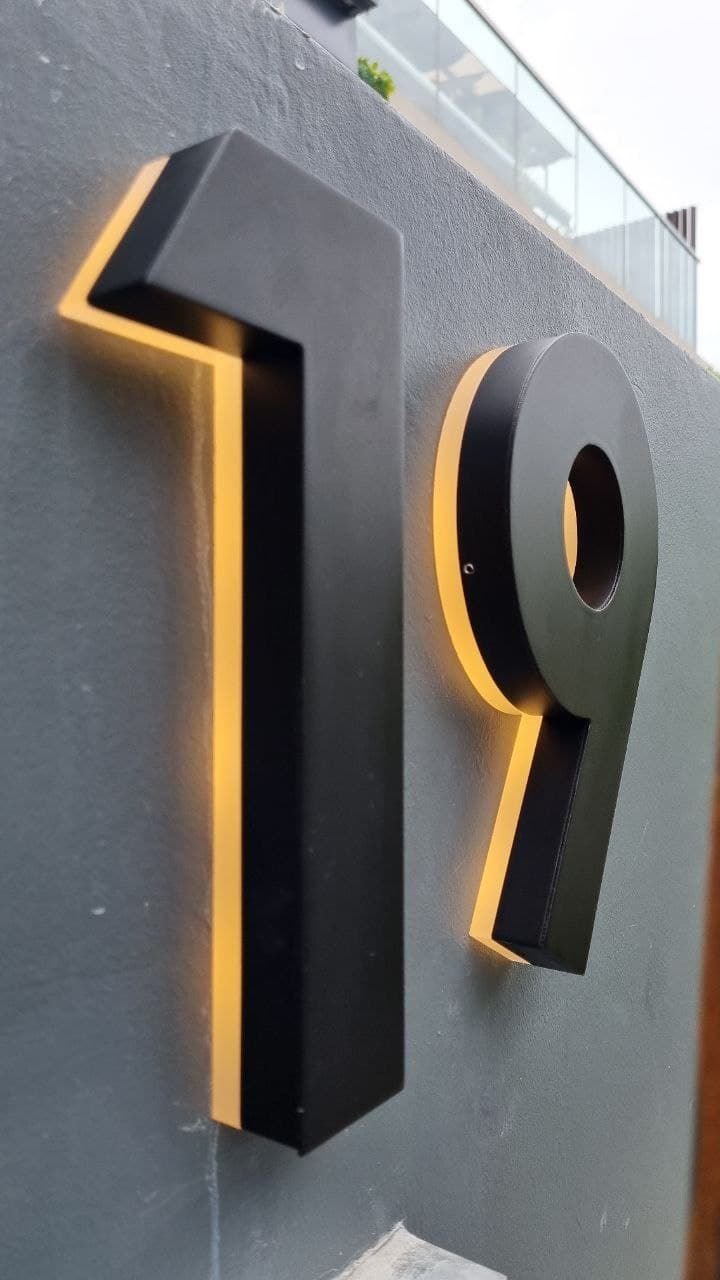

Custom Edge-Lit Letters redefine modern illuminated signage with a focus on personalization, energy efficiency, and striking visual impact. Designed to project light through the edges of each acrylic face, these bespoke letters create a vibrant halo effect that elevates your brand identity both day and night. Ideal for architectural facades, luxury retail storefronts, and high-end commercial interiors, each sign is a blend of advanced LED technology and master craftsmanship.

Built using premium materials such as aluminum, stainless steel, brass, copper, or titanium, these custom edge-lit channel letters ensure lasting durability and a polished finish. The acrylic or polycarbonate faces—clear, frosted, tinted, or custom-cut—diffuse light evenly through the edges, producing a refined perimeter glow. Each back panel, made from ACP, Dibond, or composite metal, provides structural strength while maintaining a slim, lightweight profile.

Why Choose Custom Edge-Lit Letters:

  • Tailored Design: Every sign is fully customizable—choose from various shapes, sizes, and lighting effects to align with your brand’s identity.
  • Elegant Illumination: Edge-glow technology delivers consistent brightness with smooth light diffusion.
  • Premium Craftsmanship: CNC-machined and laser-cut for precision, polished by hand for visual perfection.
  • Energy-Efficient LEDs: Low-voltage, long-life modules reduce energy costs without compromising intensity.
  • Durable Build: Weather-sealed components and IP-rated LEDs ensure reliable outdoor and indoor performance.

Design & Lighting Advantages:

  • Available with RGB LEDs, warm/cool white modules, or programmable color-changing effects.
  • Enhanced diffusion using etched acrylic, frosted lenses, or light-diffusing films.
  • Custom finishes include brushed aluminum, chrome plating, rose gold, anodized titanium, or powder coating for distinct branding.

Applications:

  • Architectural illuminated letters for office buildings, hotels, and modern facades.
  • Storefront custom LED signage for retail chains, restaurants, and luxury boutiques.
  • Commercial edge-lit displays and pylon or monument signs requiring striking visibility.
  • Interior branding and reception displays for corporate offices and exhibitions.

Installation Section

Installing Custom Edge-Lit Channel Letters requires precision and craftsmanship to maintain the clean aesthetic and optimal illumination that defines these bespoke signs. Each installation method ensures structural stability, even illumination, and effortless maintenance for architectural, retail, and commercial applications.

  1. Flush Mount (Direct Mount):
    Ideal for architectural illuminated signage and indoor branding, the flush mount system allows letters to sit directly on the surface, concealing all wiring behind the wall. This clean, minimal setup emphasizes the glowing perimeter effect while maintaining a seamless appearance.
  2. Raceway Mount:
    Perfect for storefront LED signage and outdoor installations, the raceway mount integrates electrical components, such as transformers and LED drivers, within an aluminum housing. It minimizes wall penetrations and simplifies maintenance, making it ideal for large commercial projects or multi-letter assemblies.
  3. Wireway Mount:
    The wireway mount provides a balance of aesthetics and serviceability by concealing electrical wiring in a narrow metal channel behind the letters. This configuration enhances the floating effect, commonly used for reverse edge-lit, dual-lit, and halo-edge custom designs.

Additional Mounting Options:

  • Backer Panel Installation: Adds architectural depth and stability for multi-letter signage, commonly used in corporate branding walls or monument signs.
  • Standoff or Stud Mount: Creates a floating effect, giving visual depth and a refined modern aesthetic for architectural and commercial applications.
  • Concealed Mounting: Hides all visible fasteners and wiring for uninterrupted edge illumination—ideal for high-end interior spaces.
  • Suspended Mount: Used in lobbies, atriums, or showrooms, this mounting type hangs signage from overhead supports for dynamic visual presentation.
